Telethings d.o.o.
teleGateway
teleGateway
Couldn't load pickup availability

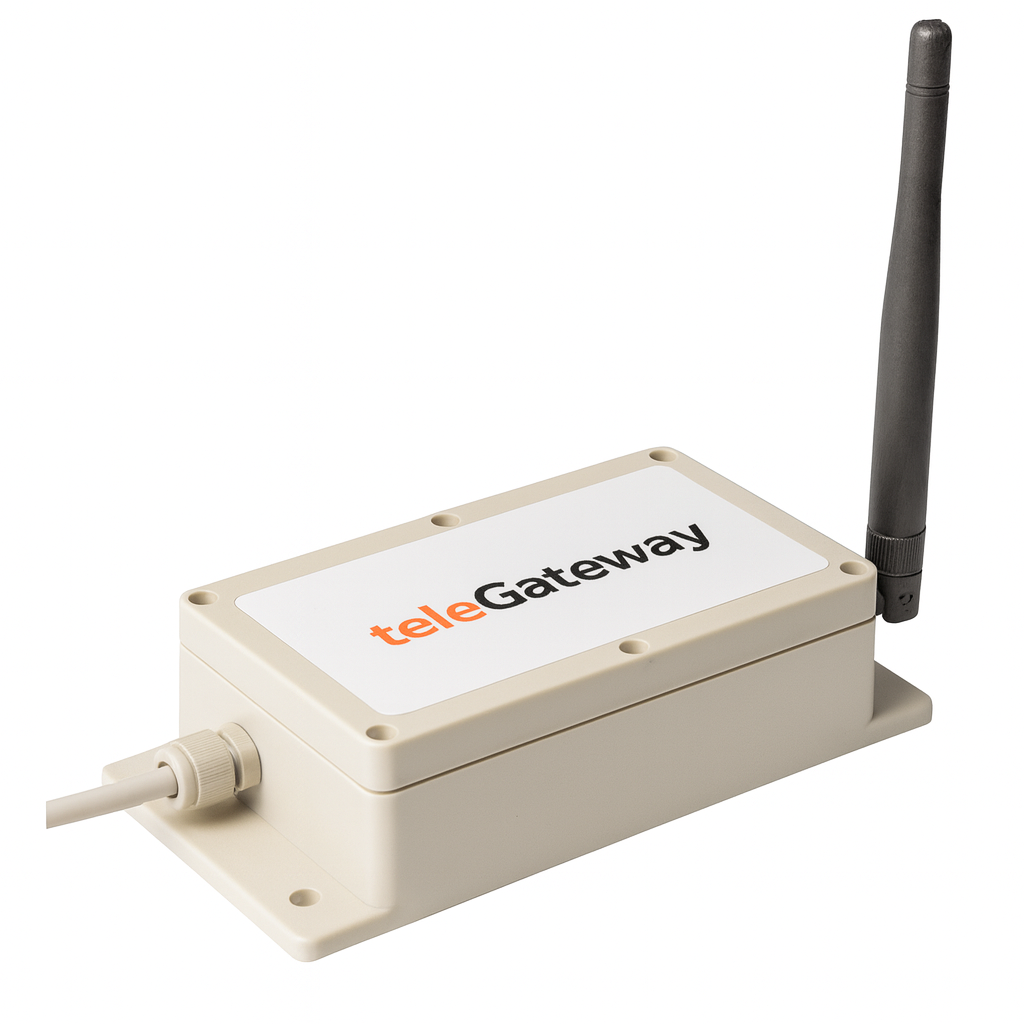

teleGateway is a modular closed LoRaWAN gateway that allows you to connect to your Internet of Things (IoT) applications. LoRaWAN provides an inexpensive way to connect batteries and mobile devices to your network infrastructure.
The main function of teleGateway is to forward received RF packets to an external server via IP / UDP connection. It also transmits RF packets sent by the external server to the end devices. teleGateway is equipped with one LoRa radio, GPS receiver and advanced 2G / 3G modem.
Specifications
| Power supply | 12V/2A POE |
| Dimensions |
200mm X 90mm X 40mm |
| Enclosure | Plastic housing |
| Protection level | IP65 |
| Storage temperature | -10°C ~ 60°C |
| Operating temperature | 0°C ~ 70°C |
| Interface | LoRaWAN Ethernet RJ45 Connector GPRS (1800/1900MHz) /2G/3G |
| GPS | High-sensitivity integrated GNSS GPS module Internal antenna |
| Frequencies | LoRa (TM) bidirectional communication (RX : 863- 873MHz , TX : 864-873MHz) |
| Range | 15 km rural area < 2 km urban environment |
| Other LoRa functions | Sensitivity up to -139 dBm 10 programmable parallel demodulation paths 49 LoRa Demodulators over 9 channels Multi LoRa spreads factor Dynamic data rate adjustment (ADR) |
| Application | Smart Metering (Water Meter, Electric, Gas Meter) Network of security sensors Monitoring agriculture Internet of things (IoT) |
Documentation
ENG - User manual - teleGateway - 1L
ENG - Instalation guide - teleGateway - 1L
Application
Long-Range Connectivity for a Smarter World
The teleGateway-2L is a powerful and reliable LoRaWAN gateway designed to ensure seamless, long-range communication for IoT networks of any scale. Whether deployed in smart cities, agriculture, industry or remote environments, teleGateway-2L provides stable connectivity, robust performance and easy integration with both private and public TTN servers.
How It Works
The teleGateway-2L receives LoRa RF packets from field devices and securely forwards them to a LoRaWAN network server using the Semtech UDP protocol. It can also transmit downlink packets back to LoRa end devices. With dual connectivity options—Ethernet and LTE—it ensures uninterrupted operation even in challenging or remote locations. Using the teleGatewayConfigurator application, users can configure network parameters, server addresses and operational settings with ease. When connected to the Telethings IoT Cloud or TTN, the gateway delivers real-time metrics, reliable data transmission and continuous system monitoring.
Key Features
- Long-range LoRaWAN communication with high sensitivity and multi-channel support
- Dual connectivity options: Ethernet and integrated LTE modem
- Easy configuration using the teleGatewayConfigurator desktop application
- Automatic discovery via DHCP and mDNS
- Robust LED diagnostics for quick on-site troubleshooting
- IP65-rated enclosure for reliable indoor and outdoor deployment
- Seamless integration with private and public TTN servers
- Reliable 24/7 operation with optimized embedded Linux system
Use Cases
Smart Cities
Deploy sensors for air quality, parking, waste management, lighting and more with reliable LoRaWAN coverage.
Agriculture & Environmental Monitoring
Enable long-range soil, weather and crop monitoring to support precision farming.
Industrial Automation
Connect meters, machines and sensors across large industrial sites with stable wireless coverage.
Utilities & Energy
Support smart metering, leak detection, and energy monitoring networks.
Why Choose teleGateway-2L?
The teleGateway-2L combines advanced RF technology, powerful processing and flexible network options to deliver exceptional LoRaWAN performance. With intuitive configuration tools, reliable hardware design and seamless integration with TTN and Telethings IoT Cloud, it is the ideal choice for building scalable, long-range IoT networks. Whether for small deployments or large-scale projects, the teleGateway-2L ensures dependable connectivity, low maintenance requirements and long-term operational stability.
